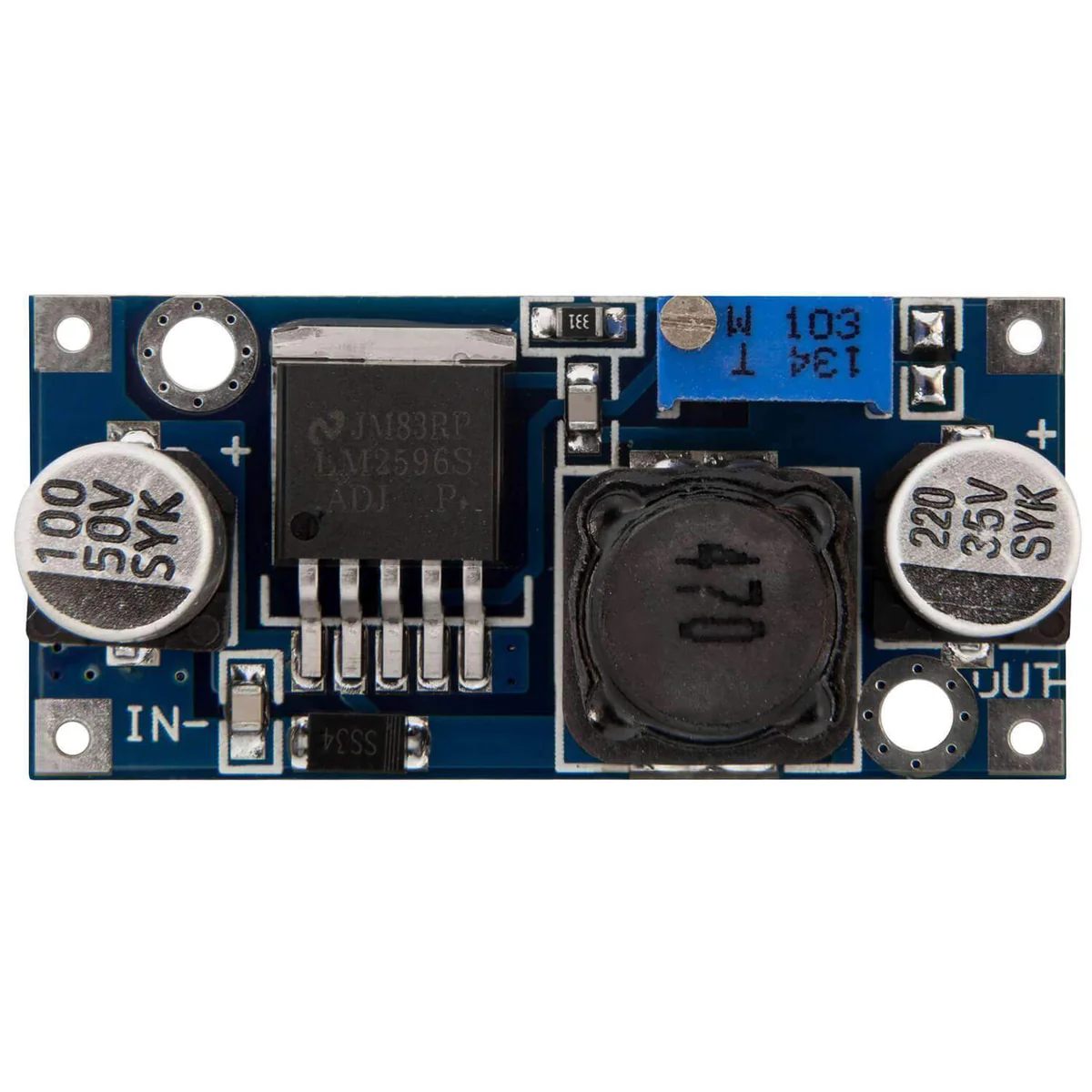

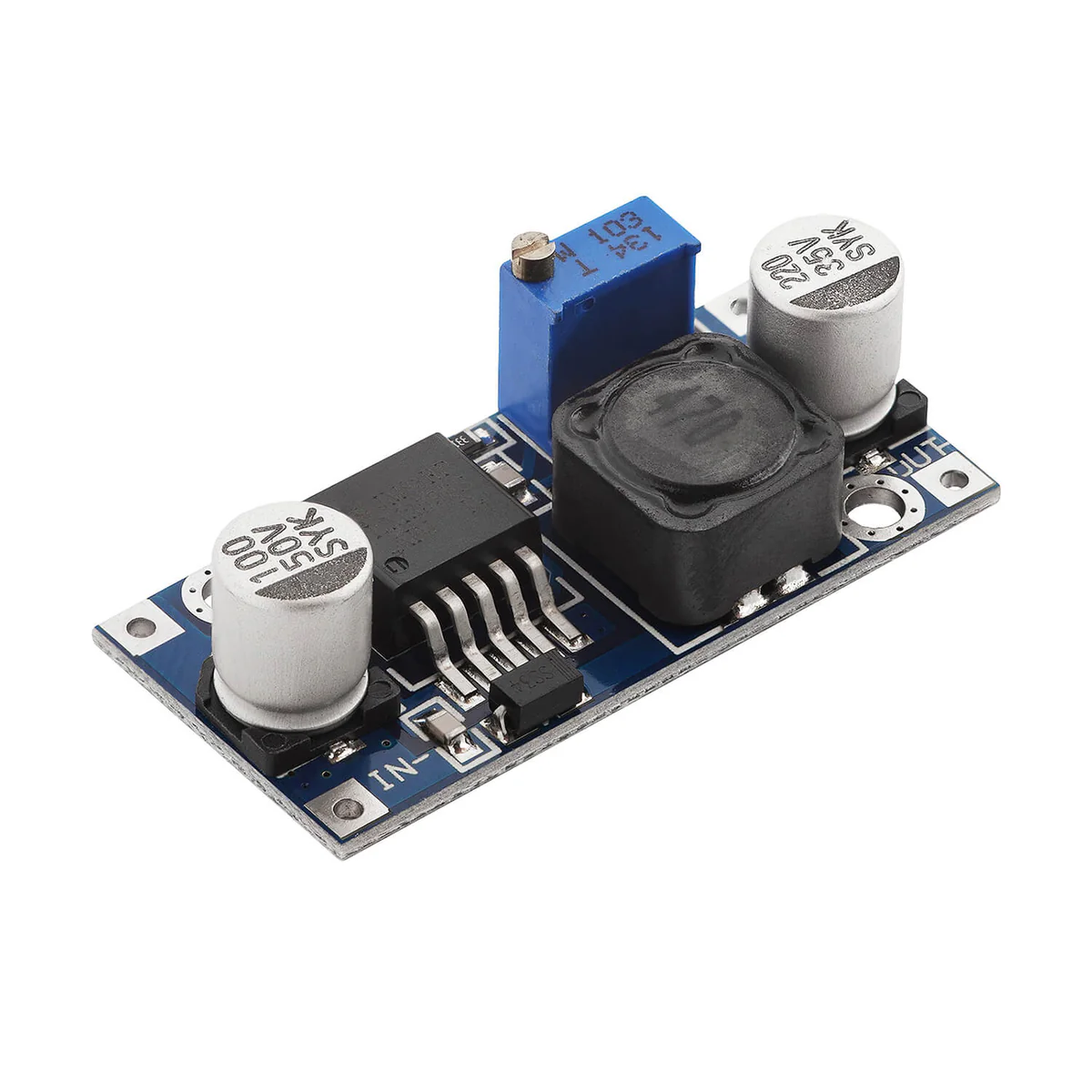

AZ-Delivery LM2596S DC-DC Step-Down Buck Converter Module

Name: LM2596S DC-DC Step-Down Buck Converter Module by AZ-Delivery
SKU: AZ-LM2596S-BUCK-CONVERTER
Availability: InStock

The AZ-Delivery LM2596S is an adjustable DC-DC step-down buck converter module used to convert a higher DC input voltage into a lower, stable DC output voltage.

It is useful for powering microcontrollers, sensors, LED projects, relays, small modules and other low-voltage electronics from batteries, power adapters or other DC power sources.

The output voltage is adjusted using the onboard trimmer potentiometer, making the module suitable for common project voltages such as 5V, 3.3V or other lower DC voltages.

This module is based on the LM2596S switching regulator and is designed for efficient voltage conversion with low heat generation compared to simple linear regulators.

Important Note

This is a step-down converter only. The input voltage must be higher than the desired output voltage.

For example, it can be used to step 12V down to 5V, but it cannot step 5V up to 12V.

Key Features

Original AZ-Delivery LM2596S step-down module
Adjustable DC-DC buck converter
Converts higher DC voltage to lower DC voltage
Adjustable output voltage using onboard trimmer potentiometer
Based on the LM2596S switching regulator
Suitable for ESP32, Arduino, sensors, LEDs and DIY electronics
Screw terminals for easy input and output wiring
Compact module size
Efficient voltage conversion for embedded projects
Useful for battery-powered and adapter-powered electronics

Typical Applications

ESP32 and Arduino power supply projects
Sensor modules and IoT devices
LED and small DC electronics projects
DIY electronics and prototyping
Battery-powered projects
Reducing 12V, 24V or other DC supplies to lower voltages
Test bench and hobby electronics use

Package Includes

1 × AZ-Delivery LM2596S DC-DC step-down buck converter module

Product Information Sheet

Attribute	Value
Brand	AZ-Delivery
Model / IC	LM2596S
Module type	DC-DC step-down converter
Converter type	Buck converter
Input voltage	3V–40V DC
Output voltage	1.25V–37V adjustable
Output current	Up to 2A continuous, briefly up to 3A
Efficiency	Typically over 90%
Adjustment	Onboard trimmer potentiometer

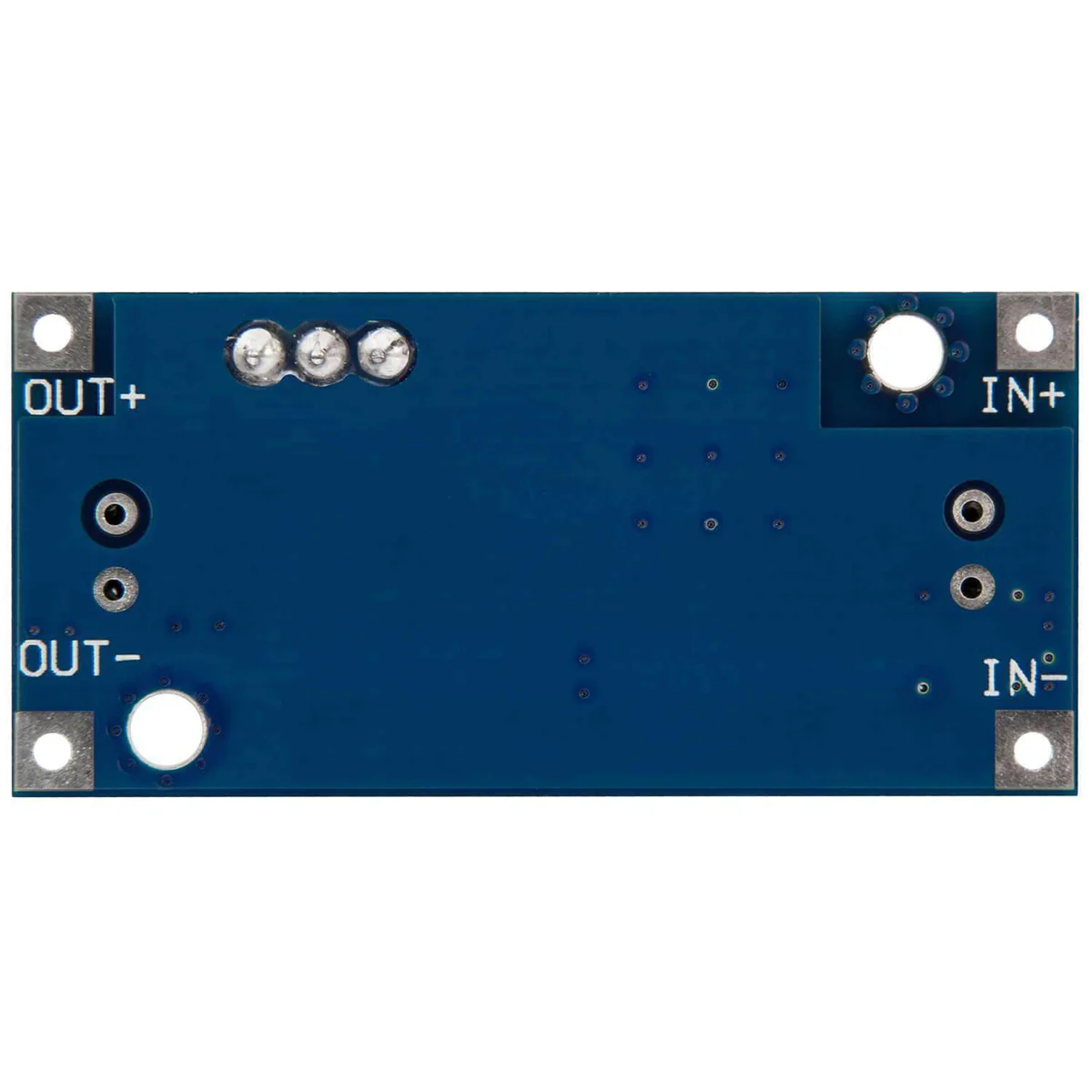

Input terminals	IN+, IN−
Output terminals	OUT+, OUT−
Size	45 × 20 × 15 mm
Weight	Approx. 3 g
Isolation	Non-isolated
Function	Step-down only
Typical use	ESP32, Arduino, sensors, LED projects, DIY electronics
Package includes	1 × AZ-Delivery LM2596S step-down module
