LX-LCBST TP4056 Li-ion Battery Charger & Step-Up Boost Module – USB-C

Name: LX-LCBST TP4056 USB-C Li-ion Charger Boost Module
SKU: LX-LCBST-TP4056-BOOST
Availability: InStock

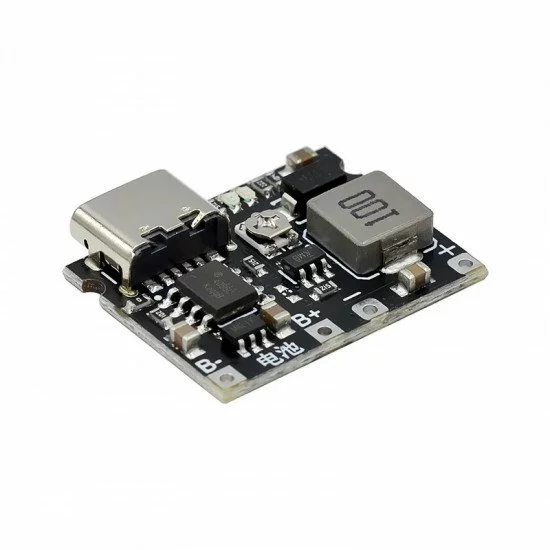

The LX-LCBST is a compact Li-ion battery charging and boost converter module for portable electronics projects.

It combines a TP4056 single-cell lithium battery charging circuit with a DC-DC step-up boost converter. This allows you to charge a single 3.7V Li-ion or LiPo battery and boost the battery voltage to a higher adjustable output voltage.

The module is useful for battery-powered ESP32 projects, Arduino projects, portable sensors, small embedded devices, DIY power supplies and compact electronics builds where one rechargeable lithium cell needs to power a higher voltage circuit.

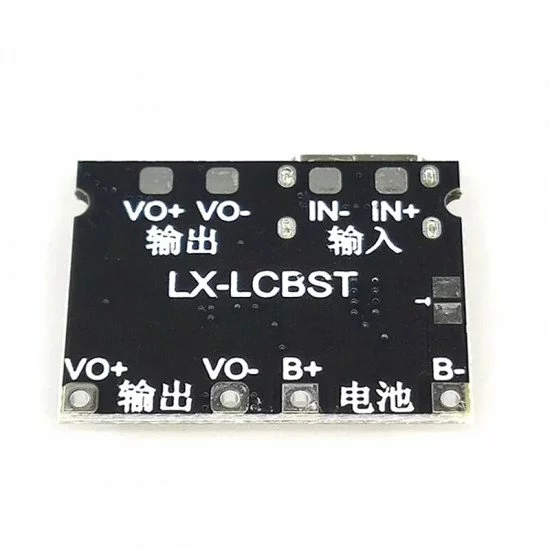

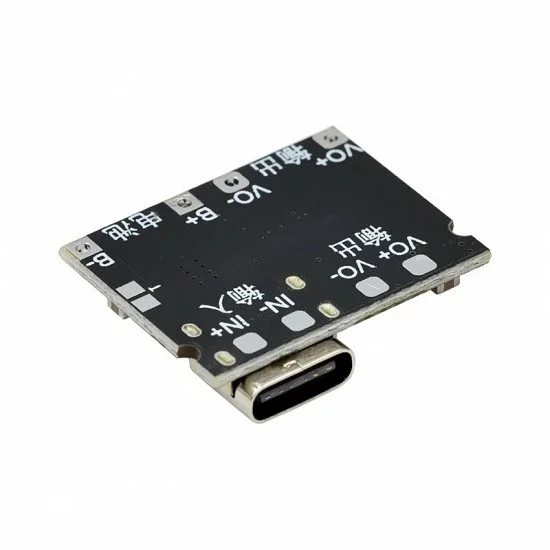

The battery is charged through the USB-C input or through the input solder pads. The boost output voltage can be adjusted using the onboard potentiometer.

Important Note

This module is designed for a single 3.7V lithium battery. Batteries must not be connected in series.

Always adjust and check the output voltage with a multimeter before connecting your device.

Key Features

LX-LCBST TP4056 lithium battery charger and boost module
Charges a single 3.7V Li-ion or LiPo battery
USB-C charging input
Adjustable step-up boost output
Output voltage adjustable up to around 28V
Constant-current / constant-voltage charging
Charging and standby indicator LEDs
Compact module for portable electronics projects
Suitable for ESP32, Arduino, sensors and DIY electronics
Useful for battery-powered and rechargeable projects

Typical Applications

Rechargeable ESP32 projects
Portable sensor modules
Arduino battery-powered projects
DIY power banks for small electronics
Battery-powered LED or display projects
Compact embedded electronics
3.7V Li-ion/LiPo powered devices requiring higher output voltage

Package Includes

1 × LX-LCBST TP4056 Li-ion battery charger and step-up boost module

Product Information Sheet

Attribute	Value
Model	LX-LCBST
Main charger IC	TP4056
Module type	Li-ion charger + step-up boost converter
Battery type	Single 3.7V Li-ion / LiPo cell
Full battery voltage	4.2V
Input	USB-C or solder pads
Input voltage range	4.2V–6.5V
Boost output voltage	4.2V–28V adjustable
Max power	5W
Charging method	Constant current / constant voltage
Charging current	Up to 1A programmable
Indicators	Red charging LED, blue standby/full LED
Output adjustment	Onboard potentiometer
Operating temperature	-40°C to 80°C
Typical use	Portable electronics, ESP32 projects, sensors, DIY power modules
